# Microbes on Earth

---

## R session 05 - Phyloseq

2021-10-12

---

# Outline

.font150[
* Introduction to the data
* Read the data
* Format and save as Phyloseq objects
* Filter data
* Bar graphs
* Alpha diversity
* Beta diversity
]

---
background-image: url(img/phyloseq-logo.png), url(img/phyloseq-gallery.png)
background-position: top 20px right 500px, top 20px right 20px
background-size: 15%, 35%

# Phyloseq R library

* See in particular tutorials for

- [importing data](https://joey711.github.io/phyloseq/import-data.html)

    - [bar plots](https://joey711.github.io/phyloseq/plot_bar-examples.html)

* Get ASVs, read abundance and metadata all together

* Filter and regroup the data

* Bar plots, Alpha and Beta diversity computations
]

---
layout: true

# Data

---
This tutorial uses a reduced metabarcoding dataset obtained by C. Ribeiro and A. Lopes dos Santos.  This dataset originates from the CARBOM cruise in 2013 off Brazil and corresponds to the 18S V4 region amplified on flow cytometry sorted samples (see pptx file for details) and sequenced on an Illumina run 2*250 bp analyzed with mothur.

---

**Reference**

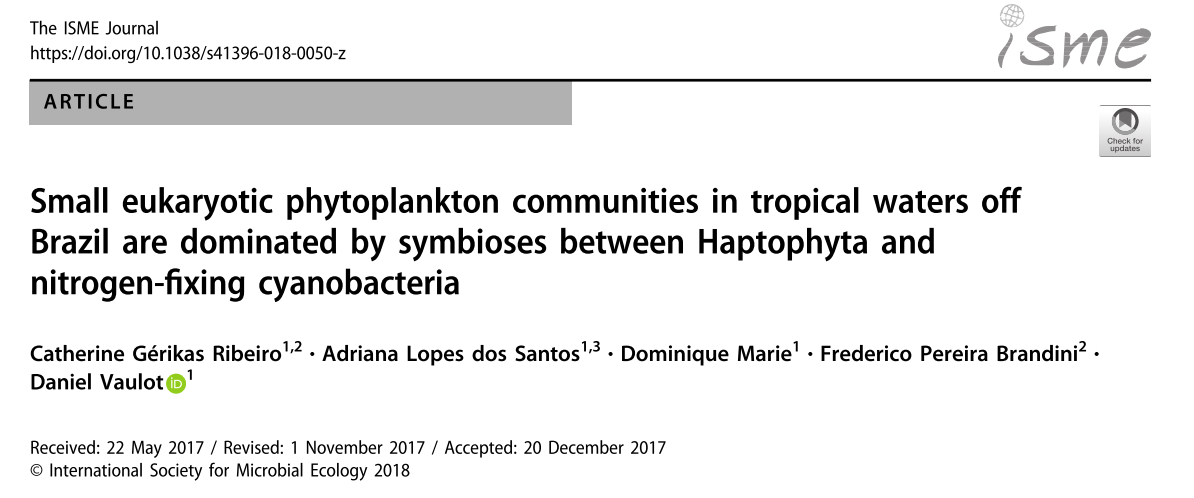

* Gérikas Ribeiro, C., Dos Santos, A.L., Marie, D., Brandini, F.P. & Vaulot, D. 2018. Small eukaryotic phytoplankton communities in tropical waters off Brazil are dominated by symbioses between Haptophyta and nitrogen-fixing cyanobacteria. ISME Journal. 12:1360–74.

---
layout: false

# Libraries

```r
library("phyloseq")
library("ggplot2")      # graphics
library("readxl")       # necessary to import the data from Excel file
library("dplyr")        # filter and reformat data frames
library("tibble")       # Needed for converting column to row names
```

---

---

Three tables are needed

* OTU
* Taxonomy
* Samples

They are read from a single Excel file where each sheet contains one of the tables

---
### OTU
* rows = OTUs or ASVs
* cols = samples
* cells = number of reads
<br>

<div class="figure" style="text-align: center">
<img src="img/table_otu.png" alt="Table OTU - OTU abundance" width="100%" />
<p class="caption">Table OTU - OTU abundance</p>
</div>

---
### Taxonomy
* rows = OTUs or ASVs
* cols = taxonomy ranks
* cells = taxon name
<br>

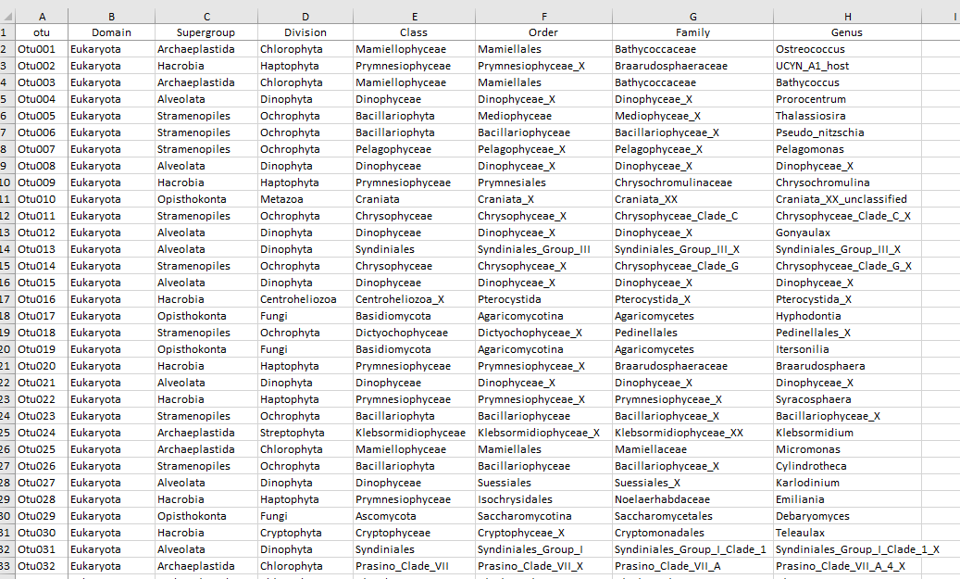

<div class="figure" style="text-align: center">
<img src="img/table_taxo.png" alt="Table Taxo - OTU taxonomy" width="100%" />
<p class="caption">Table Taxo - OTU taxonomy</p>
</div>

---
### Samples
* rows = samples
* cols = metadata type
* cells = metadata values
<br>

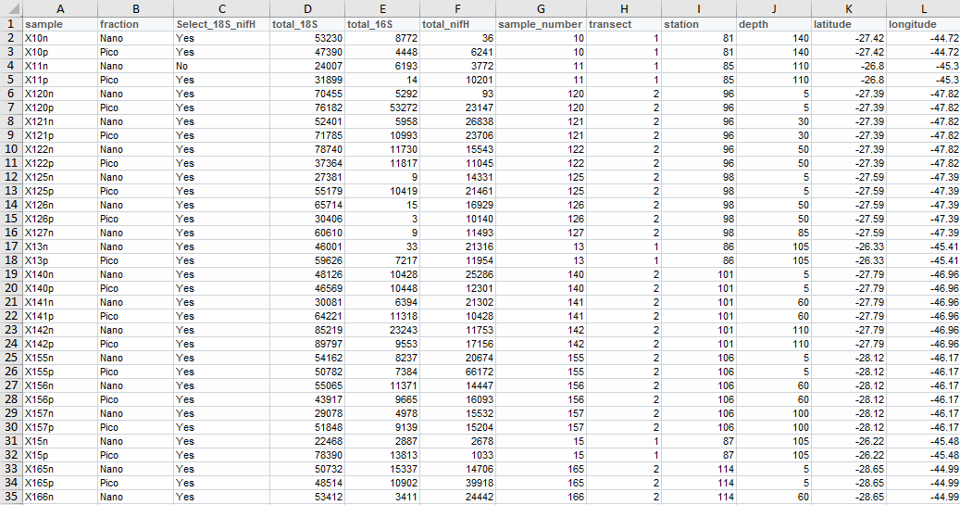

<div class="figure" style="text-align: center">
<img src="img/table_sample.png" alt="Table Samples" width="100%" />
<p class="caption">Table Samples</p>
</div>

---

## Read Excel files

```r
  otu_mat<- read_excel("../data/CARBOM metabarcodes.xlsx", sheet = "OTU matrix")
  tax_mat<- read_excel("../data/CARBOM metabarcodes.xlsx", sheet = "Taxonomy table")
  samples_df <- read_excel("../data/CARBOM metabarcodes.xlsx", sheet = "Samples")
```

---

## Phyloseq objects need to have row.names

* define the row names from the otu column

```r
  otu_mat <- otu_mat %>%
    tibble::column_to_rownames("otu")
```

* Idem for the two other matrixes

```r
  tax_mat <- tax_mat %>%
    tibble::column_to_rownames("otu")

samples_df <- samples_df %>%
    tibble::column_to_rownames("sample")
```

---

## Transform to matrixes

Sample table can be left as data frame

```r
  otu_mat <- as.matrix(otu_mat)
  tax_mat <- as.matrix(tax_mat)
```

## Transform to phyloseq objects

```r
  OTU = otu_table(otu_mat, taxa_are_rows = TRUE)
  TAX = tax_table(tax_mat)
  samples = sample_data(samples_df)

  carbom <- phyloseq(OTU, TAX, samples)
  carbom
```

```
phyloseq-class experiment-level object
otu_table()   OTU Table:         [ 287 taxa and 55 samples ]
sample_data() Sample Data:       [ 55 samples by 27 sample variables ]
tax_table()   Taxonomy Table:    [ 287 taxa by 7 taxonomic ranks ]
```

---

## Check data

```r
  sample_names(carbom)
```

```
 [1] "X10n"   "X10p"   "X11n"   "X11p"   "X120n"  "X120p"  "X121n"  "X121p"
 [9] "X122n"  "X122p"  "X125n"  "X125p"  "X126n"  "X126p"  "X127n"  "X13n"
[17] "X13p"   "X140n"  "X140p"  "X141n"  "X141p"  "X142n"  "X142p"  "X155n"
[25] "X155p"  "X156n"  "X156p"  "X157n"  "X157p"  "X15n"   "X15p"   "X165n"
[33] "X165p"  "X166n"  "X166p"  "X167n"  "X167p"  "X1n"    "X1p"    "X2n"
[41] "X2p"    "X3n"    "X3p"    "X5n"    "X5p"    "X7n"    "X7p"    "X9n"
[49] "X9p"    "tri01n" "tri01p" "tri02n" "tri02p" "tri03n" "tri03p"
```

```r
  rank_names(carbom)
```

```
[1] "Domain"     "Supergroup" "Division"   "Class"      "Order"
[6] "Family"     "Genus"
```

```r
  sample_variables(carbom)
```

```
 [1] "fraction"          "Select_18S_nifH"   "total_18S"
 [4] "total_16S"         "total_nifH"        "sample_number"
 [7] "transect"          "station"           "depth"
[10] "latitude"          "longitude"         "picoeuks"
[13] "nanoeuks"          "bottom_depth"      "level"
[16] "transect_distance" "date"              "time"
[19] "phosphates"        "silicates"         "ammonia"
[22] "nitrates"          "nitrites"          "temperature"
[25] "fluorescence"      "salinity"          "sample_label"
```
---

---

### Keep only samples to be analyzed

```r
  carbom <- subset_samples(carbom, Select_18S_nifH =="Yes")
  carbom
```

```
phyloseq-class experiment-level object
otu_table()   OTU Table:         [ 287 taxa and 54 samples ]
sample_data() Sample Data:       [ 54 samples by 27 sample variables ]
tax_table()   Taxonomy Table:    [ 287 taxa by 7 taxonomic ranks ]
```

---

### Keep only photosynthetic taxa

```r
  carbom <- subset_taxa(carbom, Division %in% c("Chlorophyta", "Dinophyta", "Cryptophyta",
                                                "Haptophyta", "Ochrophyta", "Cercozoa"))
  carbom <- subset_taxa(carbom, !(Class %in% c("Syndiniales", "Sarcomonadea")))
  carbom
```

```
phyloseq-class experiment-level object
otu_table()   OTU Table:         [ 205 taxa and 54 samples ]
sample_data() Sample Data:       [ 54 samples by 27 sample variables ]
tax_table()   Taxonomy Table:    [ 205 taxa by 7 taxonomic ranks ]
```

---

Normalize number of reads in each sample using median number of reads.

```r
  total = median(sample_sums(carbom))
  standf = function(x, t=total) round(t * (x / sum(x)))
  carbom = transform_sample_counts(carbom, standf)
```

The number of reads used for normalization is **44903**.

---

---

Basic bar graph based on Division

```r
plot_bar(carbom, fill = "Division")
```
]

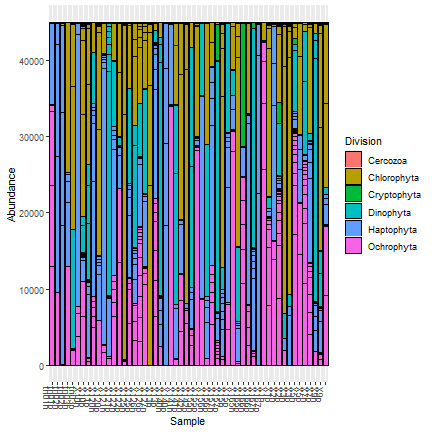

.right-plot[
<img src="R-session-05-phyloseq_files/figure-html/unnamed-chunk-22-1.png" width="75%" style="display: block; margin: auto;" />
]

---

This is done by adding ggplot2 modifier.

```r
plot_bar(carbom, fill = "Division") +
 geom_bar(aes(color=Division,
              fill=Division),
          stat="identity",
          position="stack")
```
]

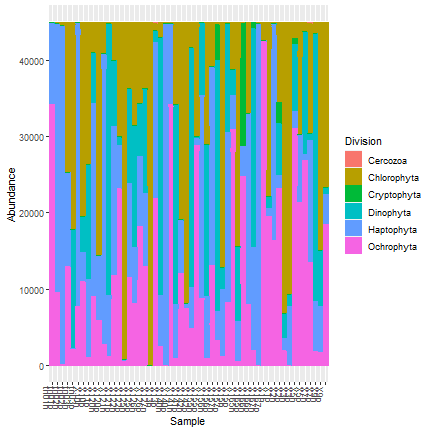

.right-plot[
<img src="R-session-05-phyloseq_files/figure-html/unnamed-chunk-23-1.png" width="75%" style="display: block; margin: auto;" />
]
---

```r
carbom_fraction <- merge_samples(carbom, "fraction")

plot_bar(carbom_fraction, fill = "Division") +
  geom_bar(aes(color=Division,
               fill=Division),
           stat="identity",
           position="stack")
```
]

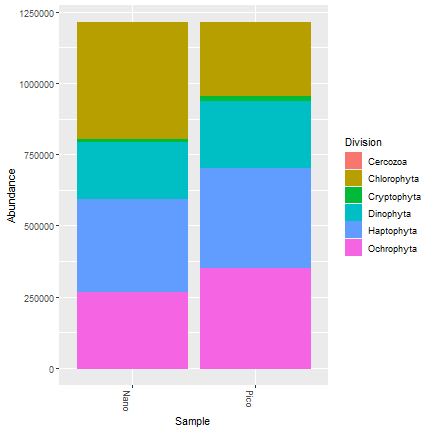

.right-plot[
<img src="R-session-05-phyloseq_files/figure-html/unnamed-chunk-24-1.png" width="75%" style="display: block; margin: auto;" />
]

---

```r
# Filter Chlorophyta
  carbom_chloro_ps <- subset_taxa(carbom,
                               Division %in% c("Chlorophyta"))
# Transform from phylseq to dataframe
  carbom_chloro_df <- psmelt(carbom_chloro_ps) %>%
# Group by fraction and level
   group_by(fraction, level) %>%
# Compute relative % for each group
   mutate(Abundance_pct = Abundance/sum(Abundance) * 100)

# Use ggplot directly

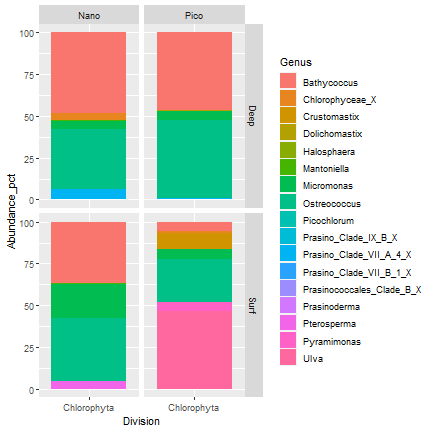

  ggplot(carbom_chloro_df)  +
    geom_bar(aes(x= Division, y = Abundance_pct, fill=Genus),
           stat="identity",
           position="stack") +
    facet_grid(rows = vars(level), cols=vars(fraction))
```
]

.right-plot[
<img src="R-session-05-phyloseq_files/figure-html/unnamed-chunk-25-1.png" width="80%" style="display: block; margin: auto;" />
]

---

Other include: "Observed",  "ACE", "Simpson", "InvSimpson", "Fisher"

```r

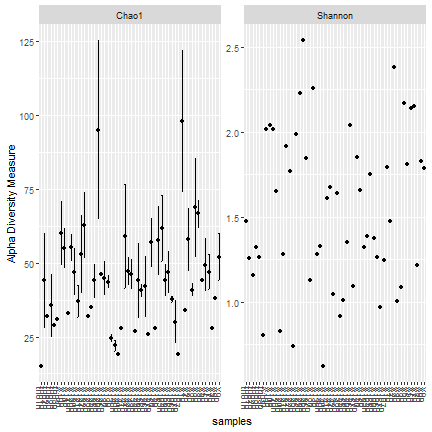

plot_richness(carbom,
              measures=c("Chao1", "Shannon"))
```
]

.right-plot[
<img src="R-session-05-phyloseq_files/figure-html/unnamed-chunk-26-1.png" width="80%" style="display: block; margin: auto;" />
]

---

Regroup together samples by level and fraction.

```r

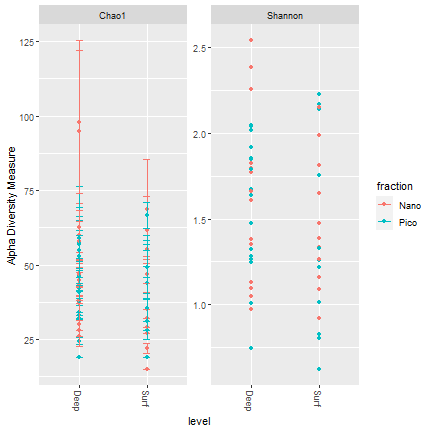

  plot_richness(carbom, measures=c("Chao1", "Shannon"),
                x="level",
                color="fraction")
```
]

.right-plot[
<img src="R-session-05-phyloseq_files/figure-html/unnamed-chunk-27-1.png" width="80%" style="display: block; margin: auto;" />
]

---

---

```r
carbom.ord <- ordinate(carbom,
                       method ="NMDS",
                       distance ="bray")
```
]

```
Square root transformation
Wisconsin double standardization
Run 0 stress 0.2317058
Run 1 stress 0.2434282
Run 2 stress 0.2518364
Run 3 stress 0.2336963
Run 4 stress 0.2610581
Run 5 stress 0.2294631
... New best solution
... Procrustes: rmse 0.09891983  max resid 0.3902268
Run 6 stress 0.2490844
Run 7 stress 0.2528563
Run 8 stress 0.2427709
Run 9 stress 0.2418987
Run 10 stress 0.2597176
Run 11 stress 0.2370944
Run 12 stress 0.2294626
... New best solution
... Procrustes: rmse 0.0005427461  max resid 0.00283235
... Similar to previous best
Run 13 stress 0.2485507
Run 14 stress 0.2479295
Run 15 stress 0.2358392
Run 16 stress 0.2385162
Run 17 stress 0.2601798
Run 18 stress 0.2578494
Run 19 stress 0.2512572
Run 20 stress 0.2503546
*** Solution reached
```
]

---

## Plot OTUs

* Ordination: NMDS
* Distance: Bray

```r

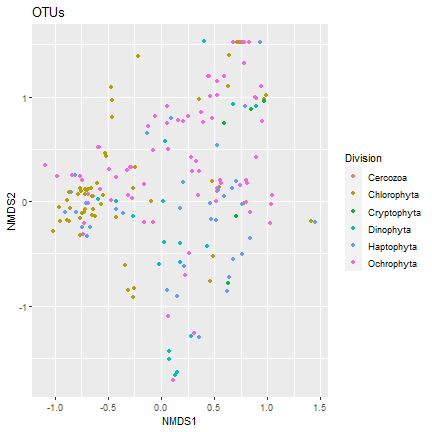

plot_ordination(carbom,
                carbom.ord,
                type="taxa",
                color="Division",
                title="OTUs")
```
]

.right-plot[
<img src="R-session-05-phyloseq_files/figure-html/unnamed-chunk-29-1.png" width="80%" style="display: block; margin: auto;" />
]

---
exclude: true

## Plot OTUs
A bit confusing, so make it more easy to visualize by breaking according to taxonomic division.

```r
plot_ordination(carbom,
                carbom.ord,
                type="taxa",
                color="Class",
                title="OTUs",
                label="Class") +
  facet_wrap(vars(Division), 3)
```
]

.right-plot[
<img src="R-session-05-phyloseq_files/figure-html/unnamed-chunk-30-1.png" width="80%" style="display: block; margin: auto;" />
]

---

## Plot Samples

Enlarge the points to make it more easy to read.

```r
plot_ordination(carbom,
                carbom.ord,
                type="samples",
                color="fraction",
                shape="level",
                title="Samples") +
  geom_point(size=3)
```
]

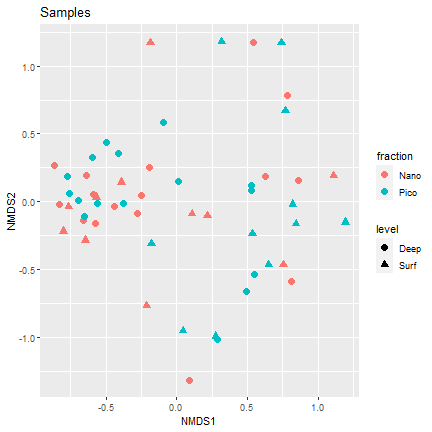

.right-plot[
<img src="R-session-05-phyloseq_files/figure-html/unnamed-chunk-31-1.png" width="80%" style="display: block; margin: auto;" />
]

---

```r

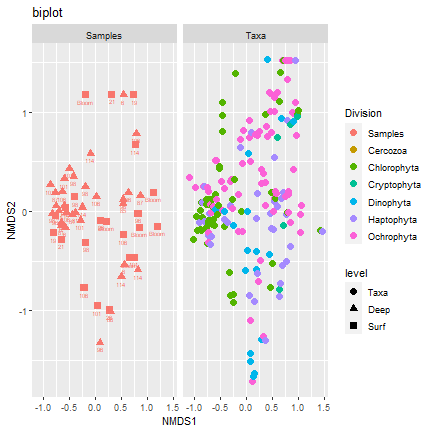

plot_ordination(carbom,
                carbom.ord,
                type="split",
                color="Division",
                shape="level",
                title="biplot",
                label = "station") +
  geom_point(size=3)
```
]

.right-plot[
<img src="R-session-05-phyloseq_files/figure-html/unnamed-chunk-32-1.png" width="80%" style="display: block; margin: auto;" />
]

---

## Methods

**CCA** -
Performs correspondence analysis, or optionally, constrained correspondence analysis (a.k.a. canonical correspondence analysis), via cca

**RDA** -
Performs redundancy analysis, or optionally principal components analysis, via rda

**NMDS** -
Performs Non-metric MultiDimenstional Scaling of a sample-wise ecological distance matrix onto a user-specified number of axes, k. By default, k=2, but this can be modified as a supplementary argument.

**MDS/PCoA** -
Performs principal coordinate analysis (also called principle coordinate decomposition, multidimensional scaling (MDS), or classical scaling) of a distance matrix (Gower 1966), including two correction methods for negative eigenvalues. See pcoa for further details.

---

## Distances

* manhattan
* euclidean
* canberra
* bray
* kulczynski
* jaccard
* gower
* altGower
* morisita
* horn
* mountford
* raup
* binomial
* chao
* cao
* unifrac

---

# What did we learn ?

--
.font150[
- Alpha diversity
]

--
.font150[
- Beta diversity
]
