Current Issues in Ecology

layout: true
background-image: url(img/logo_SBR.png), url(img/NTU-Logo-full-colour.png), url(img/phytopk/scales-01.jpg)
background-position: right 50px bottom 50px,left 50px bottom 50px, right 50px bottom 200px
background-size: 25%, 20%, 40%

# Current Issues in Ecology

---

## Scales in marine plankton ecology

.font120[**Daniel Vaulot**]

.font120[Course coordinator: **David Wardle**]

2021-03-18

---
layout: false
class: middle, inverse

# Outline

.font150[
* The marine Environment
* Marine Phytoplankton
* Spatial Scales
* Temporal Scales
* Time Series
]

---
layout: true

# The Marine Environment

---

background-image: linear-gradient(to bottom, rgba(255,255,255,0.7) 0%, rgba(255,255,255,0.7) 100%), url(img/phytopk/sea-surface-temperature-01.jpg)
background-position: center middle
background-size: 100%

---
background-image: url(img/phytopk/sea-surface-temperature-01.jpg)
background-position: right 50px bottom 50px
background-size: 65%

## Temperature

---

## Marine Environment is highly dynamic
.student[What factors drive oceanic circulation?]

---
background-image: url(img/phytopk/coriolis-01.png)
background-position: right 100px bottom 100px
background-size: 40%

## Currents

* Wind (Atmospheric Circulation)
* **Earth rotation** (Coriolis effect)
* Water density (Temperature, Salinity)
* Continents
* Turbulence

.footnote[https://www.arcgis.com/apps/MapJournal/index.html?appid=d629dd5cc3fe48ea9fc744dada861da0]

---
background-image: url(img/phytopk/currents-03.png)
background-position: right 100px bottom 50px
background-size: 55%

## Currents

* Wind (Atmospheric Circulation)
* Earth rotation (Coriolis effect)
* Water density (Temperature, Salinity)
* **Continents**
* Turbulence

.footnote[https://www.arcgis.com/apps/MapJournal/index.html?appid=d629dd5cc3fe48ea9fc744dada861da0]

---
background-image: url(img/phytopk/currents-05.gif)
background-position: right 50px bottom 100px
background-size: 60%

## Currents

* Wind (Atmospheric Circulation)
* Earth rotation (Coriolis effect)
* Water density (Temperature, Salinity)
* Continents
* **Turbulence**
.footnote[https://svs.gsfc.nasa.gov/3827]

---
## Currents

<br>

---
layout: true

# Marine Plankton

---
background-image: linear-gradient(to bottom, rgba(255,255,255,0.7) 0%, rgba(255,255,255,0.7) 100%), url(img/phytopk/plankton-diversity-02.jpg)
background-position: center middle
background-size: 100%

---
background-image: url(img/phytopk/marine-foodweb-01.jpg)
background-position: bottom 20px right 50px
background-size: 50%

## Classical view of marine foodwebs

.student[Waht is the definition of plankton ?]

.student[What are the different types of plankton ?]

---
background-image: url(img/phytopk/plankton-diversity-02.jpg)
background-position: bottom 50px right 50px
background-size: 60%

## Plankton diversity
* Phytoplankton
* Zooplankton
--

* Bacteria
* Viruses

---
background-image: url(img/phytopk/plankton-size-classes.png)
background-position: bottom 50px right 50px
background-size: 65%

## Size classes

---
background-image: url(img/phytopk/worden-2015-process-diversity.jpg)
background-position: bottom 50px right 50px
background-size: 60%

## Complex processes

* Predation
* Symbiosis
* Mixotrophy
* Parasitism

---
background-image: url(img/phytopk/plankton-diversity-03.jpg)
background-position: bottom 100px center
background-size: 65%

## Phytoplankton

.student[Can you name phytoplankton groups ?]

---
background-image: url(img/phytopk/phytoplankton_types.jpg)
background-position: bottom 200px center
background-size: 80%

## Major groups

---
background-image: url(img/phytopk/haeckel-diatoms-01.JPG), url(img/phytopk/haeckel-dinos-01.JPG)
background-position: left 100px top 100px, right 100px top 100px
background-size: 28%, 30%

## Diatoms and dinoflagellates: 20-200 µm

---
background-image: url(img/phytopk/picopk-domi.png)
background-position: bottom 20px right 50px
background-size: 55%

## Picoplankton: 0.2-2 µm
* Very small eukaryotes (_Ostreococcus_)
* Cyanobacteria  (_Synechococcus_)

---
background-image: url(img/phytopk/plankton-diversity.png), url(img/phytopk/2012-not-tree.png)
background-position: left 50px bottom 150px, right 50px bottom 100px
background-size: 30%, 55%

## Wide phylogenetic diversity

.footnote[Not, F., Siano, R., Kooistra, W.H.C.F., Simon, N., Vaulot, D. & Probert, I. 2012. In Piganeau, G. [Ed.] Genomic Insights Gained into the Diversity, Biology and Evolution of Microbial Photosynthetic Eukaryotes. Elsevier.]

---

layout: true

# Spatial scales

---
background-image: linear-gradient(to bottom, rgba(255,255,255,0.7) 0%, rgba(255,255,255,0.7) 100%), url(img/phytopk/chlorophyll-satellite-03.jpg)
background-position: center middle
background-size: 100%

---
background-image: url(img/phytopk/chloropicophyceae-fluorescence-01.jpg)
background-position: bottom 50px right 20px
background-size: 60%

## Chlorophyll

Proxy of phytoplankton biomass
---
background-image: url(img/phytopk/satellite-modis.png)
background-position: bottom 50px right 20px
background-size: 50%

## Chlorophyll

Can be measured from space

---
background-image: url(img/phytopk/chlorophyll-satellite-03.jpg)
background-position: bottom 50px right 20px
background-size: 63%

## Chlorophyll

What can you see ?

---
background-image: url(img/phytopk/chlorophyll-satellite-bloom-Emiliania_huxleyi.jpg), url(img/phytopk/e-huxleyi.jpg)
background-position: bottom 50px right 100px, bottom 50px left 50px
background-size: 55%, 25%

## Blooms

#### English Channel
Coccolithophorids

---
background-image: url(img/phytopk/chlorophyll-satellite-bloom-NZ.jpg)
background-position: bottom 50px right 100px
background-size: 63%

## Blooms

#### New Zealand

---
background-image: url(img/phytopk/chlorophyll-satellite-bloom-baltic.jpg), url(img/phytopk/Nodularia_spumigena.jpg)
background-position: bottom 50px right 150px, bottom 50px left 50px
background-size: 45%, 25%

## Blooms

#### Baltic
Cyanobacteria
---
background-image: url(img/phytopk/plankton-diversity-03.jpg)
background-position: bottom 50px center
background-size: 50%

.student[What factors control phytoplankton ?]

---
background-image: url(img/phytopk/phyto-controls.png)
background-position: bottom 50px right 100px
background-size: 50%

## What controls phytoplankton ?

#### Positive

* Light
* Nutrients (Nitrogen, Phosphorus)
* Trace elements (Iron)

#### Negative

* Predation
* Parasites (e.g. viruses)
* Death

#### Species selection

* Temperature
* Salinity

---
background-image: url(img/phytopk/plankton-diversity-03.jpg)
background-position: bottom 50px center
background-size: 50%

.student[Is phytoplankton uniformly distributed in the water column?]

---
background-image: url(img/phytopk/ocean-vertical-01.jpg)
background-position: bottom 50px center
background-size: 50%

## Water column

---
background-image: url(img/phytopk/ocean-vertical-02.png)
background-position: bottom 30px center
background-size: 35%

## Euphotic layer

---
background-image: url(img/phytopk/euphotic-layer.png)
background-position: bottom 50px center
background-size: 65%

## Chlorophyll maximum

---
background-image: url(img/phytopk/ocean-sampling-02.png)
background-position: bottom 50px center
background-size: 30%

## Sampling the ocean
* Bucket sampling
---
background-image: url(img/phytopk/ocean-sampling-ctd-01.png), url(img/phytopk/ocean-sampling-ctd-02.png)
background-position: bottom 100px right 20px, bottom 50px left 50px
background-size: 55%, 35%

## Sampling the ocean
* Bottles on a Rosette
* CTD - Conducitivity, Temperature, Depth

---
background-image:  url(img/phytopk/ocean-sampling-filtration-01.png)
background-position: bottom 100px right 20px
background-size: 55%

## Sampling the ocean

* Filtration

---
background-image:  url(img/phytopk/plankton_net_01.jpg)
background-position: bottom 100px right 20px
background-size: 55%

## Sampling the ocean

* Nets

---

background-image: url(img/phytopk/ocean-sampling-01.png)
background-position: bottom 50px center
background-size: 65%

## Sampling the ocean

* Eulerian

* Lagrangian

---
background-image: url(img/phytopk/ocean-sampling-amt.png)
background-position: bottom 50px right 150px
background-size: 45%

## Sampling the ocean
* Transects (Eulerian)

---
background-image: url(img/phytopk/ocean-sampling-calcofi.png)
background-position: bottom 50px right 150px
background-size: 45%

## Sampling the ocean
* Grids (Eulerian)

.footnote[https://calcofi.org/index.php]

---
background-image: url(img/phytopk/ocean-sampling-lagrangian.png)
background-position: bottom 100px right 150px
background-size: 60%

## Sampling the ocean
* Drifting buoy (Lagrangian)

.footnote[Lizotte et al.(2008) Fate of dimethylsulfoniopropionate (DMSP) during the decline of the northwest Atlantic Ocean spring diatom bloom. Aquat Microb Ecol 52:159-173]

---
layout: true

# Temporal scales

---
background-image: linear-gradient(to bottom, rgba(255,255,255,0.7) 0%, rgba(255,255,255,0.7) 100%), url(img/phytopk/seasonal_succession_01.jpg)
background-position: center middle
background-size: 100%

---
background-image: url(img/phytopk/plankton-diversity-03.jpg)
background-position: bottom 50px center
background-size: 50%

.student[What are the most important scales in the ocean?]

---

## Temporal variations

<br>

.footnote[Bloom populations in the North Atlantic and North Pacific oceans from March 2003 to October 2006: https://svs.gsfc.nasa.gov/10971]

---
background-image: url(img/phytopk/seasonal_succession_02.jpg), url(img/phytopk/diatom_stephanopyxis.jpg), url(img/phytopk/dino_alexandrium.jpg)
background-position: bottom 50px center, top 40px right 600px, top 40px right 450px
background-size: 65%, 8%, 7.5%

## Annual scale - Spring bloom
* Diatoms
* Dinoflagellates

.footnote[Lindemann C and St. John MA (2014) A seasonal diary of phytoplankton in the North Atlantic. Front. Mar. Sci. 1:37]

---
background-image: url(img/phytopk/seasonal_succession_01.jpg)
background-position: bottom 50px right 100px
background-size: 60%

## Annual scale - Spring bloom

* Depends on latitude
    * Temperate
    * Tropical
    * Arctic

---
background-image: url(img/phytopk/el-nino-temp.jpg)
background-position: bottom 50px right 50px
background-size: 55%

## Multi-year scale - El Niño

Warm water accumulates over East Pacific

---
background-image: url(img/phytopk/el-nino-scheme.jpg)
background-position: bottom 150px right 50px
background-size: 65%

## Multi-year scale - El Niño

* Blocks upwelling
* Phytoplankton decrease
* Lower fish capture (anchovy)

---
background-image: url(img/phytopk/el-nino-index.png)
background-position: bottom 100px right 100px
background-size: 65%

## Multi-year scale - El Niño

* Year to year change in intensity

---
background-image: url(img/phytopk/hawaii-chlorophyll-01.png), url(img/phytopk/hawaii-aloha-01.jpg)
background-position: top 30px right 100px, top 150px left 50px
background-size: 55%, 25%

## Climatic change

* ALOHA station

---
background-image: url(img/phytopk/hawaii-chlorophyll-02.png), url(img/phytopk/hawaii-aloha-01.jpg)
background-position: top 30px right 100px, top 150px left 50px
background-size: 55%, 25%

## Climatic change

* ALOHA station

---
background-image: url(img/phytopk/tide-schematic.png), url(img/phytopk/tides-saint-malo.jpg)
background-position: top 50px left 250px,  bottom 50px right 50px
background-size: 45%, 40%

## Monthly scale

* Neap tide
* Spring tide

---
background-image: url(img/phytopk/1999-Vaulot-OLIPAC-diel.png)
background-position: bottom 50px right 100px
background-size: 65%

## Daily scale
Unique to marine systems

.footnote[Vaulot D., Marie D. 1999. Diel variability of photosynthetic picoplankton in the equatorial Pacific. Journal of Geophysical Research 104:3297.]

---
background-image: url(img/phytopk/scales-01.jpg)
background-position: bottom 80px right 100px
background-size: 55%

## Spatial and temporal scales

.footnote[Benway HM. et al. 2019. Ocean Time Series Observations of Changing Marine Ecosystems: An Era of Integration, Synthesis, and Societal Applications. Frontiers in Marine Science 6:1–22.]

---
layout: true

# Time series

---
background-image: linear-gradient(to bottom, rgba(255,255,255,0.7) 0%, rgba(255,255,255,0.7) 100%), url(img/phytopk/time-series-stations.png)
background-position: center middle
background-size: 100%

---
background-image: url(img/phytopk/time-series-stations.png)
background-position: bottom 70px center
background-size: 75%

## Long term stations

.footnote[Bunse C., Pinhassi J. 2017. Marine Bacterioplankton Seasonal Succession Dynamics. Trends in Microbiology 25:494–505.]

---
background-image: url(img/phytopk/plankton-diversity-03.jpg)
background-position: bottom 50px center
background-size: 50%

.student[What kind of questions can be adressed by such long term series?]

---
class: inverse, middle

.font150[
- What are the key periodicities ?
    * annual (what about equator ?)
    * tides (monthly)
    * daily
- Long term climatic trends
- What drives the year to year variability
- Recurring species ?
]

---
background-image: url(img/phytopk/time-series-plymouth.png)
background-position: bottom 50px right 50px
background-size: 65%

## Chlorophyll time series
* North Atlantic Chl-a time series (57–628 N, 20–108 W) from 1967 to 1979
* Wavelet anlysis

.footnote[Winder M., Cloern JE. 2010. The annual cycles of phytoplankton biomass. Philosophical Transactions of the Royal Society B: Biological Sciences 365:3215–3226.]

---
background-image: url(img/phytopk/time-series-04.png)
background-position: bottom 50px right 100px
background-size:60%

## Chlorophyll time series
.student[What can you see ?]

.footnote[Winder M., Cloern JE. 2010. The annual cycles of phytoplankton biomass. Philosophical Transactions of the Royal Society B: Biological Sciences 365:3215–3226.]

---
background-image: url(img/phytopk/time-series-05.png), url(img/phytopk/time-series-04.png)
background-position: bottom 150px left 50px, bottom 50px right 100px
background-size: 20%, 60%

## Chlorophyll time series
* Different environments have different frequencies

.footnote[Winder M., Cloern JE. 2010. The annual cycles of phytoplankton biomass. Philosophical Transactions of the Royal Society B: Biological Sciences 365:3215–3226.]

---

layout: true

# What drives the _Synechoccus_ bloom ?

---
background-image: linear-gradient(to bottom, rgba(255,255,255,0.7) 0%, rgba(255,255,255,0.7) 80%), url(img/phytopk/2016-Hunter-title.png)
background-position: center middle
background-size: 80%

---
background-image: url(img/phytopk/flow-cytobot-01.jpg), url(img/phytopk/flow-cytobot-02.png)
background-position: bottom 200px left 50px, bottom 50px right 100px
background-size: 30%, 60%

## Flow Cytobot
* Imaging and flow cytometry

---
background-image: url(img/phytopk/flow-cytobot-03.jpg)
background-position: bottom 50px center
background-size: 45%

## Flow Cytobot
* Diatoms

---
background-image: url(img/people/waterbury.jpg)
background-position: right 10px top 10px
background-size: 15%

## _Synechococcus_
* Discovered in 1979 by John Waterbury - _Epifluorescence microscopy_

.pull-left[

<img src="../../../Images/phytopk/Synechococcus_BIOSOPE_Microscopy_3665.jpg" width="80%" style="display: block; margin: auto;" />
]

.pull-right[
<img src="../../../Images/phytopk/1979-Waterbury-fig1.png" width="80%" style="display: block; margin: auto;" />
]
.footnote[_Waterbury, J.B., Watson, S.W., Guillard, R.R.L. & Brand, L.E. 1979. Nature. 277:293–4._]

---
background-image: url(img/phytopk/binary_fission.gif)
background-position: center middle
background-size: 45%

## Cell multiplication
* Binary fission
* Typically once every day

---
background-image: url(img/phytopk/Synechococcus_phage.png), url(img/phytopk/Synechococcus_predation_dino.png)
background-position: bottom 50px left 150px, bottom 100px right 100px
background-size: 20%, 40%

## Cell disappearance
* Virus
* Predation
* Cell death (UV, nutrient deprivation)

---

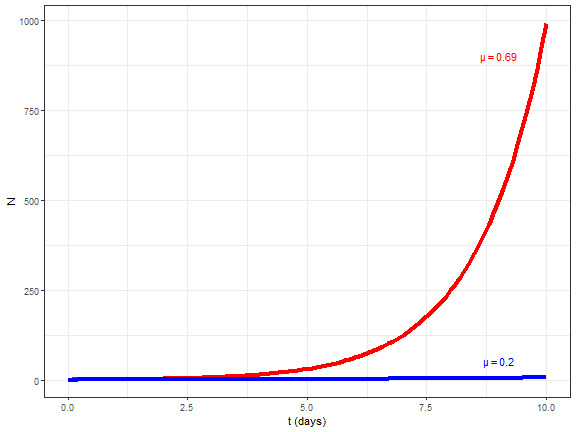

## Growth rate vs Loss rate
<br>
<br>

.pull-left[

`\(\dfrac{\mathrm{d}N}{\mathrm{d}t}=\mu_{net}*N\)`

`\(N = N_{0}\exp^{\mu_{net}*t}\)`

`\(\mu_{net} = \mu_{growth} - \mu_{loss}\)`

* Growth rate = division

* Loss rate = cell death, predation, viruses

]

.pull-right[

![](Marine-systems-scales_files/figure-html/unnamed-chunk-4-1.png)
]

---

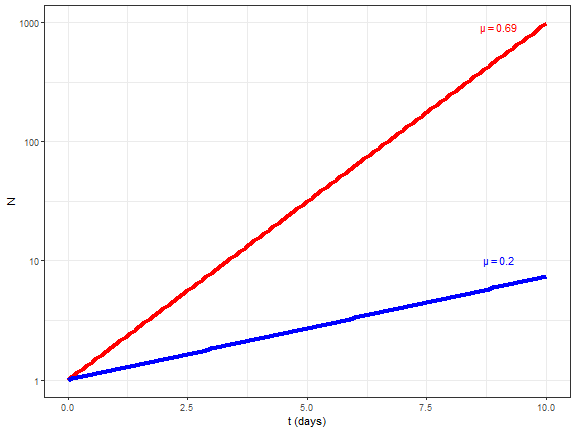

## Growth rate vs Loss rate
<br>
<br>

.pull-left[

`\(\dfrac{\mathrm{d}N}{\mathrm{d}t}=\mu_{net}*N\)`

`\(N = N_{0}\exp^{\mu_{net}*t}\)`

`\(\mu_{net} = \mu_{growth} - \mu_{loss}\)`

* Growth rate = division

* Loss rate = cell death, predation, viruses

]

.pull-right[

![](Marine-systems-scales_files/figure-html/unnamed-chunk-5-1.png)
]

---
background-image: url(img/phytopk/2016-Hunter-Syn-01.png)
background-position: bottom 50px center
background-size: 55%

## _Synechococcus_ abundance
